Premium 9-Inch High-Grade NBR Rubber Wiper for Oil-Based Mud Resistant Drilling Operations

Premium 9-Inch High-Grade NBR Rubber Wiper for Oil-Based Mud Resistant Drilling Operations

  • Premium 9-Inch High-Grade NBR Rubber Wiper for Oil-Based Mud Resistant Drilling Operations
  • Premium 9-Inch High-Grade NBR Rubber Wiper for Oil-Based Mud Resistant Drilling Operations
  • Premium 9-Inch High-Grade NBR Rubber Wiper for Oil-Based Mud Resistant Drilling Operations
  • Premium 9-Inch High-Grade NBR Rubber Wiper for Oil-Based Mud Resistant Drilling Operations
  • Premium 9-Inch High-Grade NBR Rubber Wiper for Oil-Based Mud Resistant Drilling Operations
  • Premium 9-Inch High-Grade NBR Rubber Wiper for Oil-Based Mud Resistant Drilling Operations
Premium 9-Inch High-Grade NBR Rubber Wiper for Oil-Based Mud Resistant Drilling Operations
Detail produk:
Tempat asal: Shanghai, Tiongkok
Nama merek: Royal Way
Sertifikasi: ISO 9001
Nomor model: Penghapus karet 9''
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 400 pcs
Harga: USD$8.7/pc
Kemasan rincian: Kemasan karton 40*40*20cm
Waktu pengiriman: 7-15 hari sesuai dengan jumlah pesanan
Syarat-syarat pembayaran: T/T, Western Union, Paypal, transfer Bank
Menyediakan kemampuan: 50000pcs Per Minggu
Kontak
Detil Deskripsi produk
Nama Produk: Wiper Pipa Bor 9" / Wiper Lumpur Ukuran Nominal: Diameter Luar 9 Inci (228,6 mm).
Jenis Bahan: NBR (Nitril) Bermutu Tinggi, HNBR, FKM Kisaran Diameter Dalam (ID).: Padat (Dipotong sesuai ukuran) atau Pra-potong untuk pipa 2-3/8" hingga 5-1/2"
Ketebalan: 18mm Berat satuan: 1,1kg
Kekerasan (Durometer): 70 - 85 Pantai A Kekuatan Tarik: ≥15 MPa
Perpanjangan Saat Istirahat: ≥300% Ketahanan Air Mata: Kekuatan sobek ekstra tinggi untuk pengupasan tugas berat
Warna: Hitam Kisaran suhu: -40°C hingga +121°C (-40°F hingga +250°F)
Ketahanan Kimia: Tahan terhadap Lumpur Berbasis Minyak (OBM), Lumpur Berbasis Air (WBM), dan Minyak Mentah Kompatibilitas Cairan: Kompatibel dengan cairan pengeboran, pelumas, dan oli hidrolik
Opsi Penguatan: Tersedia dengan kain internal atau penguat cincin baja Standar manufaktur: sistem mutu ISO 9001
Asal: Buatan China (Produsen Segel Langsung)
Menyoroti:

9-inch NBR rubber wiper

,

casing tubing rubber wiper

,

custom NBR rubber wiper

9 Inch Drill Pipe Rubber Wiper for Oilfield Drilling Operations





Product Overview

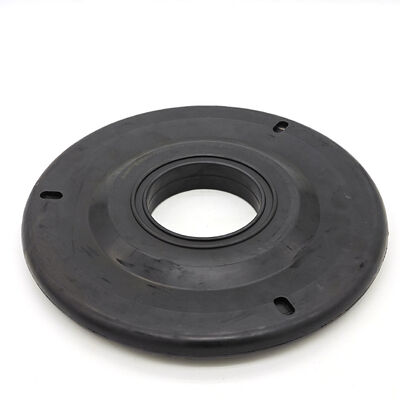

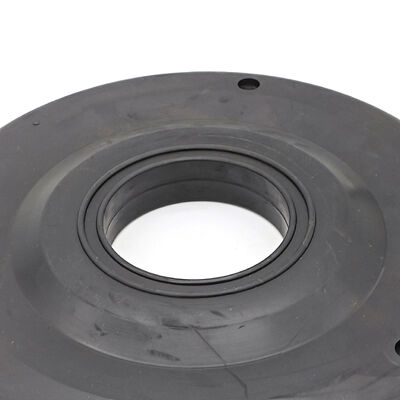

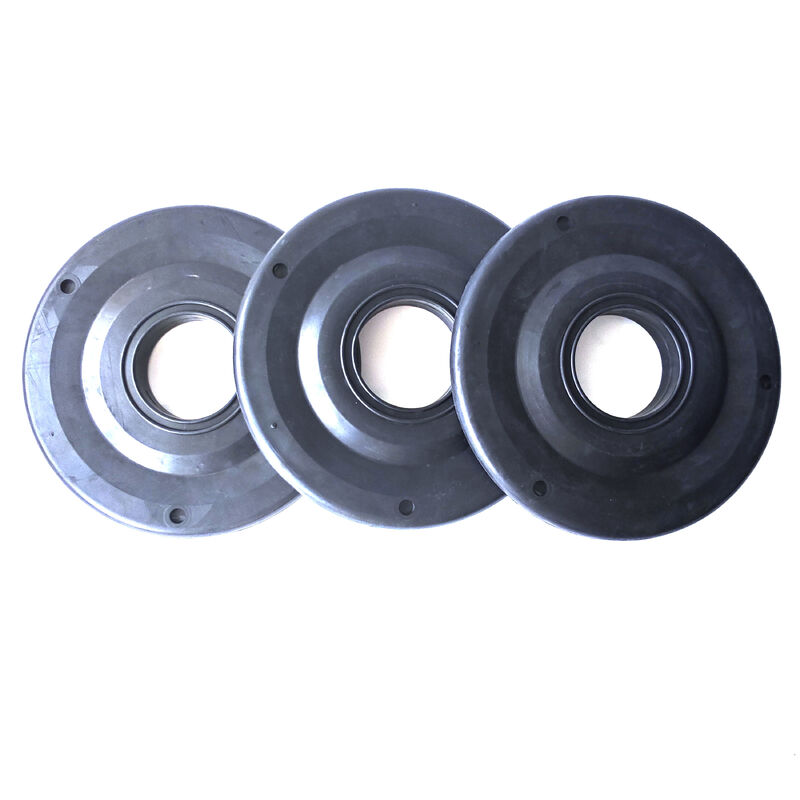

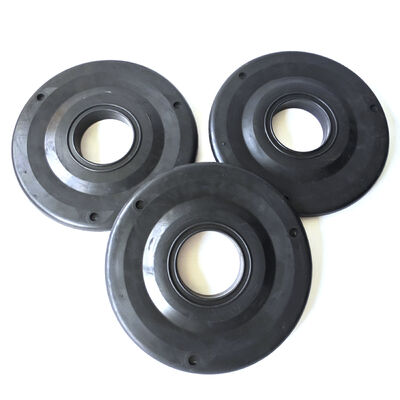

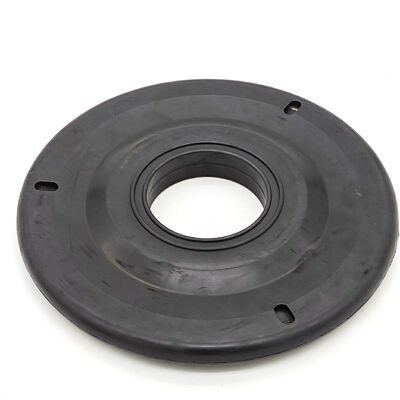

Our Premium 9-inch NBR Rubber Wiper is engineered specifically for the demanding environments of casing and tubing operations. Manufactured from high-grade Nitrile Butadiene Rubber (NBR), this pipe wiper provides an exceptional seal to strip drilling mud, oil, and water-based fluids from the pipe exterior as it is pulled from the wellbore.

As a specialized oilfield seal manufacturer, we ensure that our wipers offer the perfect balance of flexibility and toughness, maintaining a clean rig floor and protecting your equipment from corrosive fluids.



Key feature and benefits


  • High-Grade NBR Compound: Superior resistance to petroleum-based oils, crude, and hydraulic fluids.

  • Precision Stripping Action: Designed to fit snugly around casing and tubing, ensuring zero fluid carry-over.

  • Reinforced Structural Integrity: Available with internal steel rings to prevent "dishing" or deformation under high-speed pulling.

  • Universal Compatibility: Our 9" (228.6mm) OD design fits standard wiper bowls and master bushings used in global drilling operations.

  • Eco-Friendly Operation: Minimizes fluid spills, assisting rigs in meeting environmental "zero discharge" requirements.

Technical Specifications


Parameter Standard Specification
Product Type Circular Pipe Wiper / Mud Stripper
Nominal Outer Diameter 9 Inches (228.6 mm)
Inner Diameter (ID) Options Solid or Custom-cut (2-3/8", 2-7/8", 3-1/2", 4-1/2", 5", up to 7")
Base Material High-Nitrile NBR (Nitrile Butadiene Rubber)
Working Temperature Range -30°C to +120°C (-22°F to +248°F)
Working Pressure Designed for Atmospheric Stripping (Gravity Flow)
Hardness (Durometer) 70 - 85 Shore A (Adjustable based on application)
Tensile Strength ≥ 16 MPa
Elongation at Break ≥ 350%
Fluid Resistance Excellent for OBM, WBM, and Crude Oil





Appliactions


The 9" Rubber Pipe Wiper is widely used in both onshore and offshore drilling environments, including:

  • Drilling Rigs: Cleaning drill strings during tripping operations.

  • Workover Units: Managing fluids during well maintenance and completion.

  • Casing Operations: Wiping casing walls to prevent fluid migration.

  • Environmental Protection: Essential for "Zero Discharge" rig sites to keep drilling fluids within the well system.



Why choose our rubber wiper?


As a specialized sealing solution manufacturer, we understand the harsh conditions of the oil patch. Our products are:

  1. Chemical Resistant: Built to handle water-based muds (WBM), oil-based muds (OBM), and acidic well conditions.

  2. Customizable: We can adjust the rubber compounding (durometer and elasticity) to meet specific well depths and pressure requirements.

  3. Quality Assured: Every 9 inch mud wiper undergoes rigorous tension and oil-immersion testing before shipment.

  4. Manufacturer Direct: Buying directly from the factory ensures competitive pricing and shorter lead times for global oilfield service companies.

Premium 9-Inch High-Grade NBR Rubber Wiper for Oil-Based Mud Resistant Drilling Operations 0Premium 9-Inch High-Grade NBR Rubber Wiper for Oil-Based Mud Resistant Drilling Operations 1Premium 9-Inch High-Grade NBR Rubber Wiper for Oil-Based Mud Resistant Drilling Operations 2Premium 9-Inch High-Grade NBR Rubber Wiper for Oil-Based Mud Resistant Drilling Operations 3Premium 9-Inch High-Grade NBR Rubber Wiper for Oil-Based Mud Resistant Drilling Operations 4
