| Tempat asal: | Shanghai, Cina |
| Nama merek: | SHQN |
| Sertifikasi: | ISO 9001 |
| Nomor model: | Ukuran dasbor AS568 atau ID metrik × penampang berdasarkan gambar |
| Kuantitas min Order: | 5000 buah |
|---|---|
| Harga: | EXW USD$0.01/pc-$1/pc |
| Kemasan rincian: | Kantong plastik + Karton |
| Waktu pengiriman: | 7-15 Hari |
| Syarat-syarat pembayaran: | L/C, T/T, Western Union, Western Union, Transfer Bank |
| Menyediakan kemampuan: | 50000pcs Per Minggu |
| Bahan: | nbr hnbr fkm ffkm epdm karet silikon | Ukuran: | Nomor dasbor AS568, ID metrik × penampang atau gambar khusus |
|---|---|---|---|
| Warna: | berwarna-warni | Sampel: | Tersedia |
| Kekerasan: | 40–90 Pantai Referensi jangkauan; menyepakati nilai, target dan toleransi | Suhu: | Konfirmasikan senyawa yang dipilih untuk cairan dan suhu sebenarnya |
| Fitur: | Kompatibilitas dan masa pakai bergantung pada senyawa dan tugas pengoperasian | Penggunaan: | Posisi penyegelan statis atau dinamis yang sesuai dengan peralatan yang ditentukan |
| Aplikasi: | banyak digunakan di rumah dan pabrik | MOQ: | 5000 buah |
| Waktu Pengiriman: | 7-15 hari | Kemasan: | karton atau karton kayu |
| Menyoroti: | NBR karet O cincin penyegelan gasket,HNBR karet O cincin kinerja tinggi,EPDM karet silikon O cincin tahan lama |
||
Chinese factory supplier provide high quality rubber o rings rubber sealing gasket
Product introduction
SHQN supplies rubber O-rings for static and suitable dynamic sealing positions defined by equipment drawings. The existing range includes NBR, HNBR, FKM, FFKM, EPDM and silicone options with a 40–90 Shore A catalogue hardness reference. Specify one compound grade and hardness target with the inside diameter, cross-section and tolerance.
For oilfield O-ring orders, provide the groove drawing, fluid composition, temperatures and pressure cycling. Specify continuous and peak temperatures, exposure duration and thermal cycling for each selected compound grade. For sour-gas, aggressive-chemical or rapid-decompression service, include the required grade qualification, medium composition and decompression conditions together with the complete equipment pressure limits.
For pump or machinery maintenance, identify the exact sealing position and whether the duty is static or dynamic. Include the process fluid and cleaning agents. NBR may be considered for compatible petroleum service and EPDM for appropriate water-based service, but formulation and temperature limits must be reviewed. Installation in one position does not establish suitability for a rotating shaft or another medium.
An O-ring requires an inside diameter and circular cross-section reference. Other sealing gasket profiles need their own drawing, thickness and mating-surface details. Do not infer interchangeability from the general term “rubber sealing gasket.” Include the equipment position and whether the seal is static or moving.
| Order detail | Required reference |
|---|---|
| Size | AS568 dash number or metric inside diameter and cross-section, with units and tolerance |
| Compound | Approved grade selected for fluid, additives, cleaning media and temperatures |
| Hardness | Target Shore A value and tolerance; 40–90 is a range reference |
| Duty | Sealing position, motion and pressure conditions from equipment documentation |
Color does not identify the compound, and hardness does not independently establish a pressure rating. Confirm the groove condition and follow the equipment maker’s installation procedure. We operate an ISO 9001 quality management system; agree dimensional and material inspection criteria with the order.

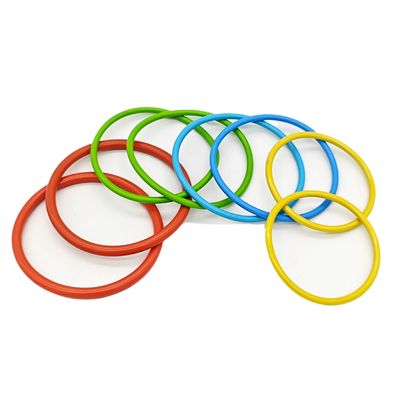

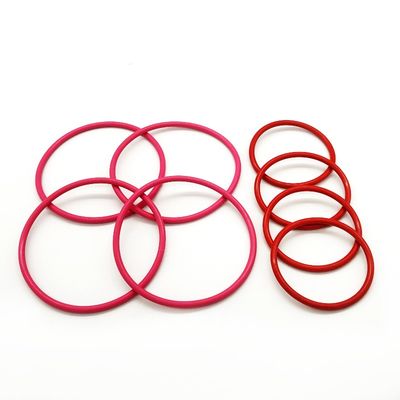

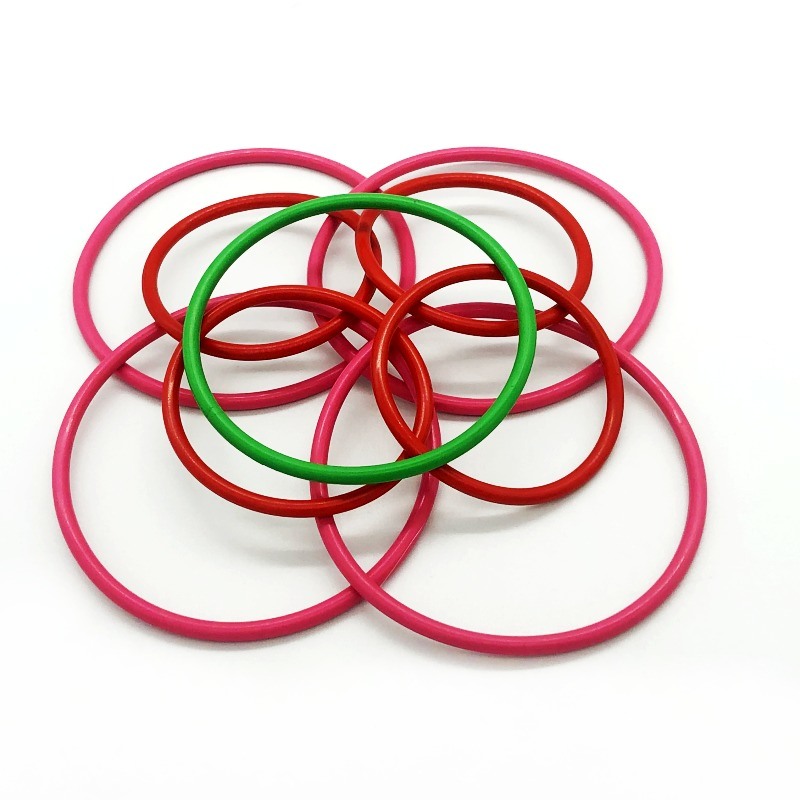

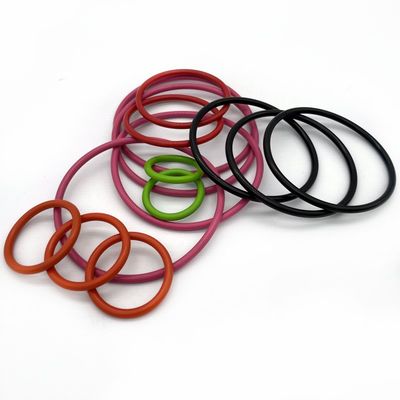

Product photo show
![]()
![]()
![]()
![]()
![]()
![]()
